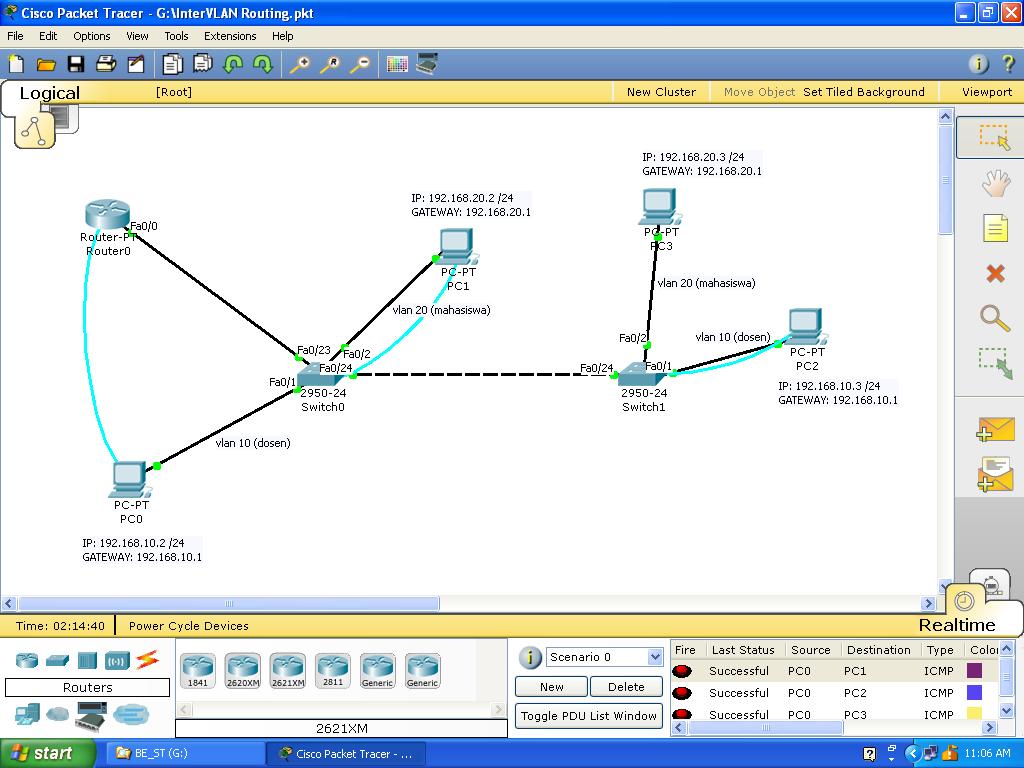

Setting VLAN

Konfigurasi Switch0:

Switch>ena

Switch#conf t

Switch(config)#vlan  10

Switch(config-vlan)#name dosen

Switch(config-vlan)#exit

Switch(config)#vlan  20

Switch(config-vlan)#name mahasiswa

Switch(config-vlan)#exit

Switch(config)#int fa0/1

Switch(config-if)#switchport access vlan 10

Switch(config-if)#exit

Switch(config)#int fa0/2

Switch(config-if)#switchport access vlan 20

Switch(config-if)#exit

Switch(config)#int fa0/23

Switch(config-if)#switchport mode trunk

Switch(config-if)#exit

Switch(config)#int fa0/24

Switch(config-if)#switchport mode trunk

Switch(config-if)#exit

Konfigurasi Switch1:

Switch>ena

Switch#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Switch(config)#vlan  10

Switch(config-vlan)#name dosen

Switch(config-vlan)#exit

Switch(config)#vlan  20

Switch(config-vlan)#name mahasiswa

Switch(config-vlan)#exit

Switch(config)#int fa0/1

Switch(config-if)#switchport access vlan 10

% Access VLAN does not exist. Creating vlan 10

Switch(config-if)#exit

Switch(config)#int fa0/2

Switch(config-if)#switchport access vlan 20

% Access VLAN does not exist. Creating vlan 20

Switch(config-if)#exit

Switch(config)#int fa0/24

Switch(config-if)#switchport mode trunk

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/24, changed state to down

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/24, changed state to up

Switch(config-if)#exit

Konfigurasi Router0:

Continue with configuration dialog? [yes/no]: no

Press RETURN to get started!

Router>ena

Router#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Router(config)#int fa0/0

Router(config-if)#no ip add

Router(config-if)#no sh

%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit

Router(config)#int fa0/0.10

%LINK-5-CHANGED: Interface FastEthernet0/0.10, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0.10, changed state to up

Router(config-subif)#encapsulation dot1q 10

Router(config-subif)#ip add 192.168.10.1 255.255.255.0

Router(config-subif)#exit

Router(config)#int fa0/0.20

%LINK-5-CHANGED: Interface FastEthernet0/0.20, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0.20, changed state to up

Router(config-subif)#encapsulation dot1q 20

Router(config-subif)#ip add 192.168.20.1 255.255.255.0

Router(config-subif)#exit

Read more »

Setting Jaringan Summarization Sederhana

Pertama buka aplikasi Packet Tracer 5.3, terus buat jaringan seperti yang ada dibawah ini:



Konfigurasi Router0:

Router>ena

Router#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Router(config)#int fa0/0

Router(config-if)#ip add 172.16.10.1 255.255.255.0

Router(config-if)#no sh

%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit

Router(config)#int ser2/0

Router(config-if)#ip add 172.16.5.1 255.255.255.0

Router(config-if)#no sh

%LINK-5-CHANGED: Interface Serial2/0, changed state to down

Router(config-if)#clock rate 64000

Router(config-if)#exit

Router(config)#

%LINK-5-CHANGED: Interface Serial2/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial2/0, changed state to up

Router(config)#ip route 192.168.0.0 255.255.252.0 ser2/0

Router(config)#exit

%SYS-5-CONFIG_I: Configured from console by console

Router#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Router(config)#ip route 172.16.1.0 255.255.255.0 ser2/0

Router(config)#exit

%SYS-5-CONFIG_I: Configured from console by console

Router#copy ru

Router#copy running-config st

Router#copy running-config startup-config

Destination filename [startup-config]?

Building configuration…

[OK]

Konfigurasi Router1:

Router>ena

Router#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Router(config)#int fa0/0

Router(config-if)#ip add 172.16.1.1 255.255.255.0

Router(config-if)#no sh

%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit

Router(config)#int ser2/0

Router(config-if)#ip add 172.16.5.2 255.255.255.0

Router(config-if)#no sh

%LINK-5-CHANGED: Interface Serial2/0, changed state to up

Router(config-if)#exit

Router(config)#

%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial2/0, changed state to up

Router(config)#int ser3/0

Router(config-if)#ip add 192.168.1.1 255.255.255.0

Router(config-if)#no sh

%LINK-5-CHANGED: Interface Serial3/0, changed state to down

Router(config-if)#clock rate 64000

Router(config-if)#exit

Router(config)#

%LINK-5-CHANGED: Interface Serial3/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial3/0, changed state to up

Router(config)#ip route 172.16.10.0 255.255.255.0 ser2/0

Router(config)#exit

%SYS-5-CONFIG_I: Configured from console by console

Router#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Router(config)#ip route 192.168.2.0 255.255.255.0 ser3/0

Router(config)#exit

%SYS-5-CONFIG_I: Configured from console by console

Router#

Konfigurasi Router2:

Router>ena

Router#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Router(config)#int fa0/0

Router(config-if)#ip add 192.168.2.1 255.255.255.0

Router(config-if)#no sh

%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit

Router(config)#int ser2/0

Router(config-if)#ip add 192.168.1.2 255.255.255.0

Router(config-if)#no sh

%LINK-5-CHANGED: Interface Serial2/0, changed state to up

Router(config-if)#exit

Router(config)#

%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial2/0, changed state to up

Router(config)#ip route 172.16.0.0 255.255.240.0 ser2/0

Router(config)#exit

%SYS-5-CONFIG_I: Configured from console by console

Router#

Setelah semua router sudah dikonfigurasi, setting IP address pada masing-masing PCPC0

IP Address: 172.16.10.x  (“x” diisi angka terserah yang penting antara 2-254)

Subnet Mask: 255.255.255.0

Default Gateway: 172.16.10.1

PC1

IP Address: 172.16.1.x  (“x” diisi angka terserah yang penting antara 2-254)

Subnet Mask: 255.255.255.0

Default Gateway: 172.16.1.1

PC2

IP Address: 192.168.2.x  (“x” diisi angka terserah yang penting antara 2-254)

Subnet Mask: 255.255.255.0

Default Gateway: 192.168.2.1

Terakhir cek ping ke IP address PC lain dengan Command Prompt.
